Y23 Range Transformers

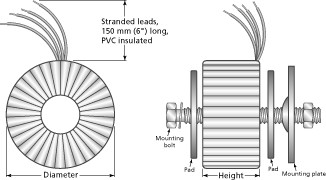

Y23 Range Transformer Mechanical Drawing





Y23 Range Transformer Mounting Specifications

Load (VA)

Mounting Plate

Bolt

15, 30, 50

50 mm dia. x 1 mm thick (2.0"dia. x .04" thick)

M5 x 40 mm

63, 80, 100, 120

70 mm dia. x 1 mm thick (2.8" dia. x .04" thick)

M6 x 50 mm

160, 230, 330

90 mm dia. x 1 mm thick (3.6" dia. x .04" thick)

M6 x 60 mm

500, 625, 800, 1000

110 mm dia. x 1 mm thick (4.3" dia. x .04" thick)

M6 x 80 mm

All types also include 2 insulating pads, 2mm (.08") thick (uncompressed)
