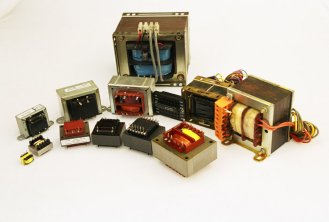

Laminated Tranformer Experts: AVEL has many years of experience in the design and manufacture of laminated transformers.  Our range is constantly expanding and offers a broad selection between 6VA and 100VA
  • Standard laminated range
  • Available from 6VA to 100VA
  • Polyester varnish finish
  • Double insulated
  • Inexpensive way to meet J.I.T. schedules

Learn About Standard Range

Custom Laminated Transformers: If your laminated transformer requirement cannot be met by one of our standard products, AVEL can design and manufacture a transformer to your exact needs at a reasonable price.
  • Custom laminated range
  • Available from 3VA to 5KVA
  • Polyester varnish finish
  • Double insulated
  • Produced to meet your needs

Learn About Custom Laminated Transformers



Laminated Transformer Range

Load
(VA)

Secondary
Voltage (V)

Secondary
Current (A)

Regulation
(Typical)

Dimensions
(w x d x h)(mm)

Mounting
Centres (mm)

Weight
(Kg)

Temperature
Rise (° C)

AVEL
P/N

6

6 + 6

500mA

-

45/40/37

54mm

-

-

-

6

9 + 9

333mA

-

45/40/37

54mm

-

-

-

6

12 + 12

250mA

-

45/40/37

54mm

-

-

-

6

24 + 24

125mA

-

45/40/37

54mm

-

-

-

12

6 + 6

1A

-

59/50/49

70mm

-

-

-

12

9 + 9

666mA

-

59/50/49

70mm

-

-

-

12

12 + 12

500mA

-

59/50/49

70mm

-

-

-

12

15 + 15

400mA

-

59/50/49

70

-

-

-

25

6 + 6

2A

-

69/57/57

80mm

-

-

-

25

9 + 9

1.38A

-

69/57/57

80mm

-

-

-

25

12 + 12

1A

-

69/57/57

80mm

-

-

-

25

15 + 15

830mA

-

69/57/57

80mm

-

-

-

50

6 + 6

2.78A

-

78/63/65

92mm

-

-

-

50

12 + 12

2A

-

78/63/65

92mm

-

-

-

50

20 + 20

1.25A

-

78/63/65

92mm

-

-

-

50

24 + 24

1A

-

78/63/65

92mm

-

-

-

100

12 + 12

4.17A

-

91/70/77

4 holes 57x45

-

-

-

100

24 + 24

2.1A

-

91/70/77

4 holes 57x45

-

-

-



Custom Laminated Transformers

If your Laminated power transformer requirement cannot be met by one of our standard products, let us design and manufacture a transformer to your exact needs. You may be surprised to learn that a custom transformer can make economical sense for your product, even when produced in small quantities. Please contact our engineers who will he happy to assist with your enquiry.
Alternatively fill out the Custom Transformer, Request for Quotation form and submit for a prompt response.

Request For Quotation
