Transformer Selector: Travel adaptors, Auto-Transformers
When specifying an Autotransformer for use abroad, it is essential that a suitable model is selected, and that any precautionary notices that may be supplied with the device are observed. If an inadequately rated device is used, the transformer will cut out periodically or repeatedly blow fuses. In all cases it is important that the Transformer is rated ABOVE the appliance rating with which it is to be used. N.B. The current drawn by an appliance at 120V will be double that drawn at 230V.

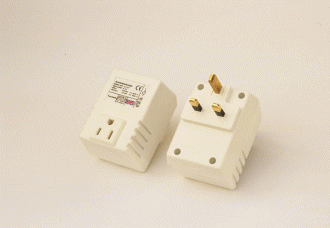

Travel Adaptor Range - UK to US

Rating.
(VA)

Style.

Size.
(Width/Depth/Height or Dia/Height)

Weight

Sockets

Part No.

30 VA

Plug Top

83 * 60 * 60

450g

One

SC5327

50 VA

Plug Top

83 * 60 * 60

485g

One

SC5474

100 VA

Cylindrical

93 * 110

1.0Kg

One

SC5328

200 VA

Cylindrical

110 * 110

1.6Kg

Two

SC5329

300 VA

Cylindrical

110 * 110

1.9Kg

Two

SC5300

500 VA

Cylindrical

110 * 110

2.83Kg

Two

SC5476

1KVA

Metal Cabinet

205 * 166 * 122

5.9Kg

Two

SC5496

1.5KVA

Metal Cabinet

205 * 166 * 122

7.5Kg

Two

SC5497

2KVA

Metal Cabinet

T.B.A.

10.5Kg

Two

SC5498

3.0KVA

Metal Cabinet

T.B.A.

T.B.A.

Two

T.B.A.

Travel Adaptor Range - Euro to US

Rating.
(VA)

Style.

Size.
(Width/Depth/Height or Dia/Height)

Weight

Sockets

Part No.

30 VA

Plug Top

83 * 60 * 60

450g

One

SC5421

50 VA

Plug Top

83 * 60 * 60

485g

One

SC5499

100 VA

Cylindrical

93 * 110

1.0Kg

One

SC5422

200 VA

Cylindrical

110 * 110

1.6Kg

Two

SC5423

300 VA

Cylindrical

110 * 110

1.9Kg

Two

SC5424

500 VA

-

-

-

-

-

1KVA

Metal Cabinet

205 * 166 * 122

5.9Kg

Two

SC5495

1.5KVA

Metal Cabinet

205 * 166 * 122

7.5Kg

Two

SC5494

2KVA

Metal Cabinet

T.B.A.

10.5Kg

Two

SC5493

3.0KVA

Metal Cabinet

T.B.A.

T.B.A.

Two

T.B.A.

Travel Adaptor Range - US to UK

Rating.
(VA)

Style.

Size.
(Width/Depth/Height or Dia/Height)

Weight

Sockets

Part No.

30 VA

-

-

-

-

-

50 VA

-

-

485g

-

-

100 VA

Cylindrical

110 * 110

1.0Kg

One

SC5416

200 VA

-

-

-

-

-

300 VA

Cylindrical

110 * 110

1.9Kg

One

SC5417

500 VA

Cylindrical

110 * 110

2.83Kg

One

SC5467

1KVA

Metal Cabinet

205 * 166 * 122

5.9Kg

Two

SC5468

1.5KVA

Metal Cabinet

205 * 166 * 122

7.5Kg

Two

SC5469

2KVA

Metal Cabinet

T.B.A.

10.5Kg

Two

SC5470

3.0KVA

Metal Cabinet

T.B.A.

T.B.A.

Two

T.B.A.

Travel Adaptor Range - Us to Euro

Rating.
(VA)

Style.

Size.
(Width/Depth/Height or Dia/Height)

Weight

Sockets

Part No.

30 VA

-

-

-

-

-

50 VA

-

-

-

-

-

100 VA

Cylindrical

110 * 110

1.0Kg

One

SC5425

200 VA

-

-

-

-

-

300 VA

Cylindrical

110 * 110

1.9Kg

One

SC5426

500 VA

-

-

-

-

-

1KVA

Metal Cabinet

205 * 166 * 122

5.9Kg

Two

SC5484

1.5KVA

Metal Cabinet

205 * 166 * 122

7.5Kg

Two

SC5485

2KVA

Metal Cabinet

T.B.A.

10.5Kg

Two

SC5486

3.0KVA

Metal Cabinet

T.B.A.

T.B.A.

Two

T.B.A.
